| Feature/Benefit |
Frame-Up™ |
Competitor |
Competitor |
| Adjustability |
- Up to one full inch
- More strength in furthest adjustment point
- Reduced inventory of closure pieces.
|
- Up to one half inch,
- Requires larger inventory
of closure pieces.
|
- Up to one full inch
- Less strength due to
design of furthest adjustment point
- Reduced inventory of
closure pieces.
|
| Design |

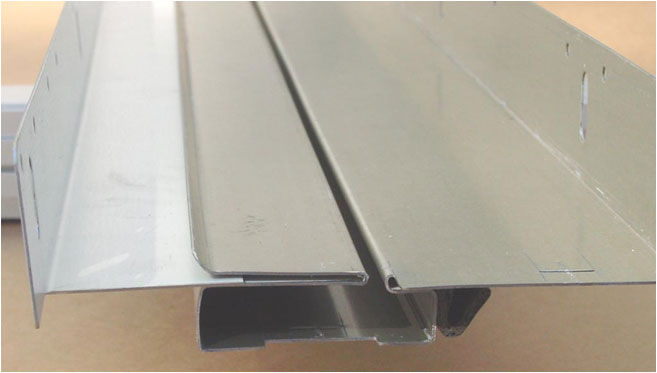

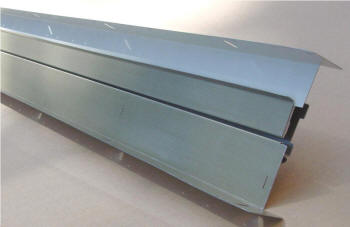

Superior closer insertion design:
- Will conform to wall conditions even if twisted.
- Will conform equally from top to bottom.
- Closer piece will have a much more secure fit with the inner
piece.
|
- Difficulty in aligning closer pieces
- Lighter gauge on closure pieces.
- May present field installation problems.
|
- Welded closer guides, once bent will not return
- If frame installs on a twist, will result in a large gap at
the bottom and a tight fit at the top or reverse.

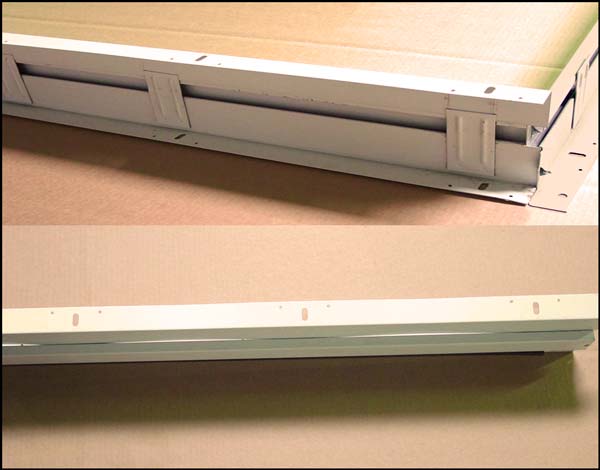

See Photo
Competitor's Frame using welded closure guides
(Click and drag image to reposition, click image to close)
|
| Hinge Reinforcement |
- Galvanized 14 Gauge reinforcement behind hinge
emboss with uniquely extruded tapped holes for superior door
holding capabilities.

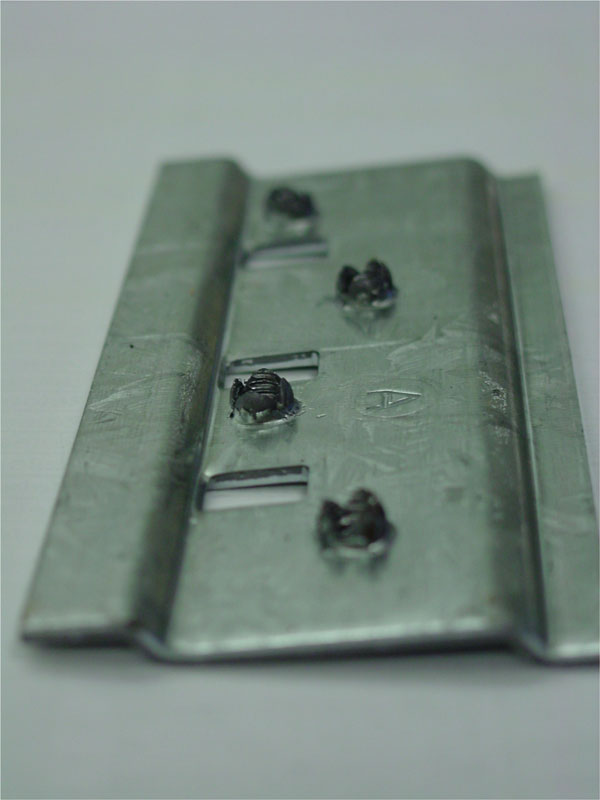

See Photo 1
Hinge Reinforcement of Frame-Up™ Adjustable Kerf Steel Door Frame
(Click and drag image to reposition, click image to close)

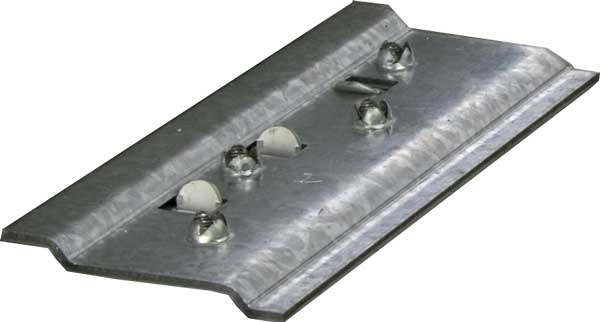

See Photo 2
Hinge Reinforcement of Frame-Up™ Adjustable Kerf Steel Door Frame
(Click and drag image to reposition, click image to close)
|
- Welded to frame, not consistent on location
of frame.
|
- Hinge reinforcement has no extrusion depth leads to screws that may strip out easily
- Less door
holding capability.
|
